DF-A0355

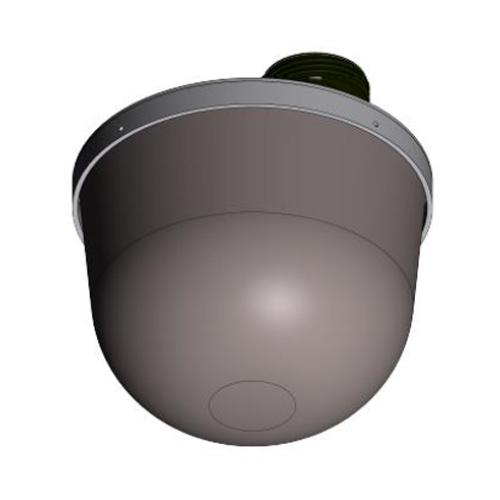

Drone mounted DF Antenna
Download datasheet
The DF-A0355 is an ultra-compact, wideband correlative Direction Finding Array. The low Size, Weight and Power (SWaP) of the array makes it ideal for manpack or UAV-mountable applications. The DF-A0355 incorporates channel amplification with low internal noise figure as well as a noise source for RF chain calibration.
*No payment required on checkout
-
Call our Sales team
- +27110345300
-
Email our Sales team
- [email protected]
Specifications & Resources for DF-A0355
Ideal application and market usage
-
Ideal markets
-
-
Safety & Security
- Defence
-
Safety & Security
- Design Features
-
• Light weight and compact
• Wideband performance
• Internal preamplifiers with RF chain calibration feature.
- Frequency Range
- 900 – 6000 MHz
- Number of bands
- 1
- Channels per band
- 4
- Polarisation
- Vertical
- DF method(s)
- Correlative DF
- Characterisation / manifold
- See attached datasheet
- Azimuth
- 360°
- Elevation
- 90° (horizon) - 120°
- Signal Polarisation
- Vertical
- RMS accuracy
- See attached datasheet
- OMNI Output
- No
- Nominal input impedance
- 50 Ω
- Dimensions (h x d)
- 100 mm (excl connector) x 150 mm TBC (incl connector) x 150 mm
- Mass
- < 650 g
- Environmental:
- Designed for MIL-STD-810G
- EMI:
- Designed for MIL-STD-461F
- Power supply
- 6-18 V DC
- Control
- USB2
- RF Calibration
- RF chain calibration using integrated noise source
- Power consumption
- < 3 W
