MISC-A0288

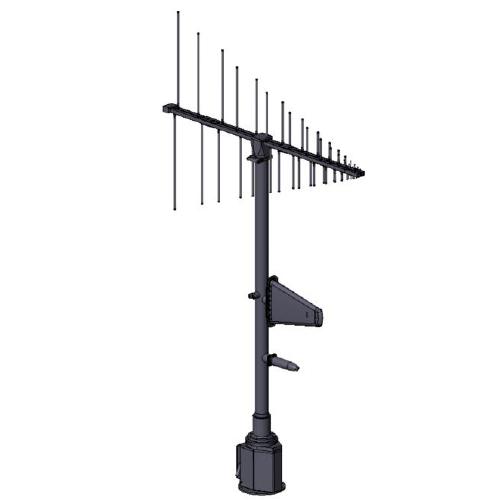

Naval Azimuth Rotator
Download datasheet
Mast azimuth rotator is a single axis positioner designed for use with medium to very large antennas and antenna arrays used in naval application. The rotator has a controller which can be connected to using RS-485 serial interface.
*No payment required on checkout
-
Call our Sales team
- +27110345300
-
Email our Sales team
- [email protected]
Specifications & Resources for MISC-A0288
Ideal application and market usage
- Design Features
-
• Rotator with controller
• RS485 interface
• High load capability
• Naval
- Interface
- RS485
- Control protocol
- ASCII commands
- Supply Voltage
- 18-28 V DC
- Maximum current
- 30 A at 24 V
- Rotation
- Limited to ± 270⁰
- Cable management
- Cables manually turn with system rotator. Cables not supplied with system.
- Maximum static overturning moment
- 7000 N.m.
- Maximum turning moment
- 4000 N.m.
- Rotation speed
- 30° per second
- Dimensions
- Height: 500 mm, Diameter: 500mm
- Temperature (Storage)
- -40°C and +85°C.
- Temperature (Operational)
- -40°C and +71°C
