MONO-A0084

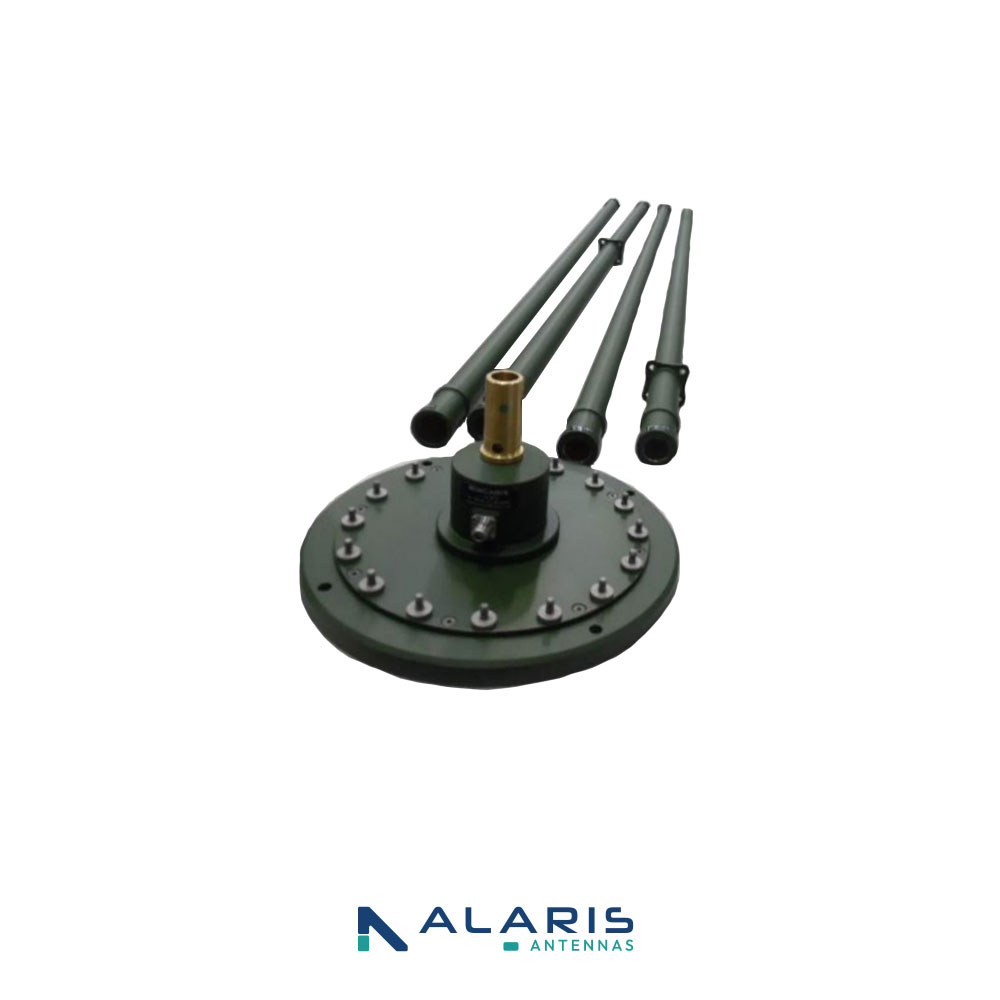

Tactical HF Active Monopole
The HF whip monopole antenna is designed for deployment on open ground or permanent installation and includes a deployable groundplane. The antennas’ radiation pattern is suitable for medium to long range HF monitoring. The active version of this antenna uses an operational amplifier as the active component of the antenna which operates from 9 kHz to 30 MHz. The active version features a passive bypass mode which comes into operation when the antenna is powered down. In this mode, the active matching and amplification circuitry is bypassed, and the antenna operates as a completely passive receiving antenna.
*No payment required on checkout
-
Call our Sales team
- +27110345300
-
Email our Sales team
- [email protected]
Specifications & Resources for MONO-A0084
-
Ideal applications
-
- Electronic Surveillance
- Design Features
-
9 kHz to 30 MHz frequency range, Rugged Quick deployment time, Self-contained groundplane, Glass fibre insulated radiator, Lightning induced surge and static protection, Passive bypass mode option
- Frequency range
- 9 kHz - 30 MHz
- Polarisation
- Vertical
- Nominal input impedance
- 50 Ω
- Connectors
- N-type female
- OIP3
- 33 dBm
- Input voltage
- 12.5 - 15.5 VDC
- DC input current (max)
- 400 mA
- Length
- 4.5 m
- Total mass
- 7 kg excl. packaging
- Base dimensions
- 300 mm x 300 mm
- Groundplane diameter
- 10000 mm
- Mounting method
- Free-standing on the ground with guy ropes; Can be bolted to a concrete plinth
- Water ingress rating
- IP65
