DF-A0245

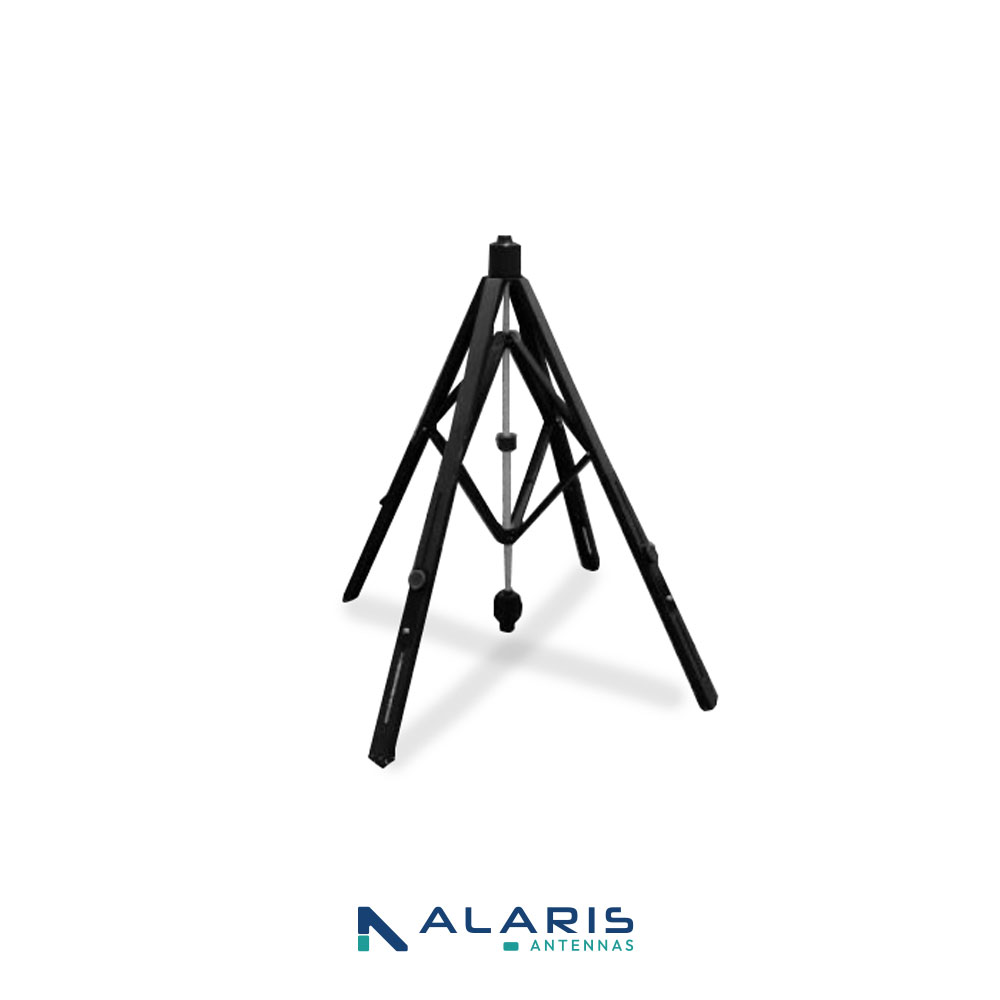

HF Loop Quadpod for Mobile Antennas
The DF-A0245 is a wideband DF antenna intended for on-the-move direction finding from 1 - 200 MHz The quad-pod’s performance is enhanced with patented hybrid loop-Adcock technology to provide improved sensitivity vs traditional designs of the same form factor. The antenna presents patterns suitable for the Watson Watt estimation method, as well as 3-channel correlative DF The quad pod has a MIL-DTL-38999 connector interface to allow for base mounting of VUHF modules. A cavity inside the antenna houses an integrated band switch that allows control and calibration circuitry to be integrated into the antenna. External and internal RF chain calibration is accommodated, and a compass is also integrated in the antenna
*No payment required on checkout
-
Call our Sales team
- +27110345300
-
Email our Sales team
- [email protected]
Specifications & Resources for DF-A0245
-
Ideal markets
-
-
Safety & Security
- Defence
- Homeland security
-
Safety & Security
-
Ideal applications
-
-
Spectrum management
- Radio direction finding
- Electronic Surveillance
-
Signals intelligence
- Radio direction finding
-
Spectrum management
- Design Features
- Frequency range
- 1 - 200 MHz
- Channels per band
- 3
- DF method
- Watson-Watt or 3-channel correlative
- RMS accuracy: Using full vector
- < 2°
- Polarisation
- Vertical
- Control
- RS 485, dedicated switching lines
- Connector
- MIL-38999 connector on cable
- Antenna outputs
- 3 x co-axial (size 12 contact)
- Ex cal input
- 1 x co-axial (size 12 contact)
- Dimensions (h x d)
- < 700 mm x 2000 mm (incl. quadpod)
- Mass
- < 6.5 kg
- Temperature range
- -30ºC to +55ºC (operating); -40ºC to +71ºC (storage)
- Ingress protection
- IP65
