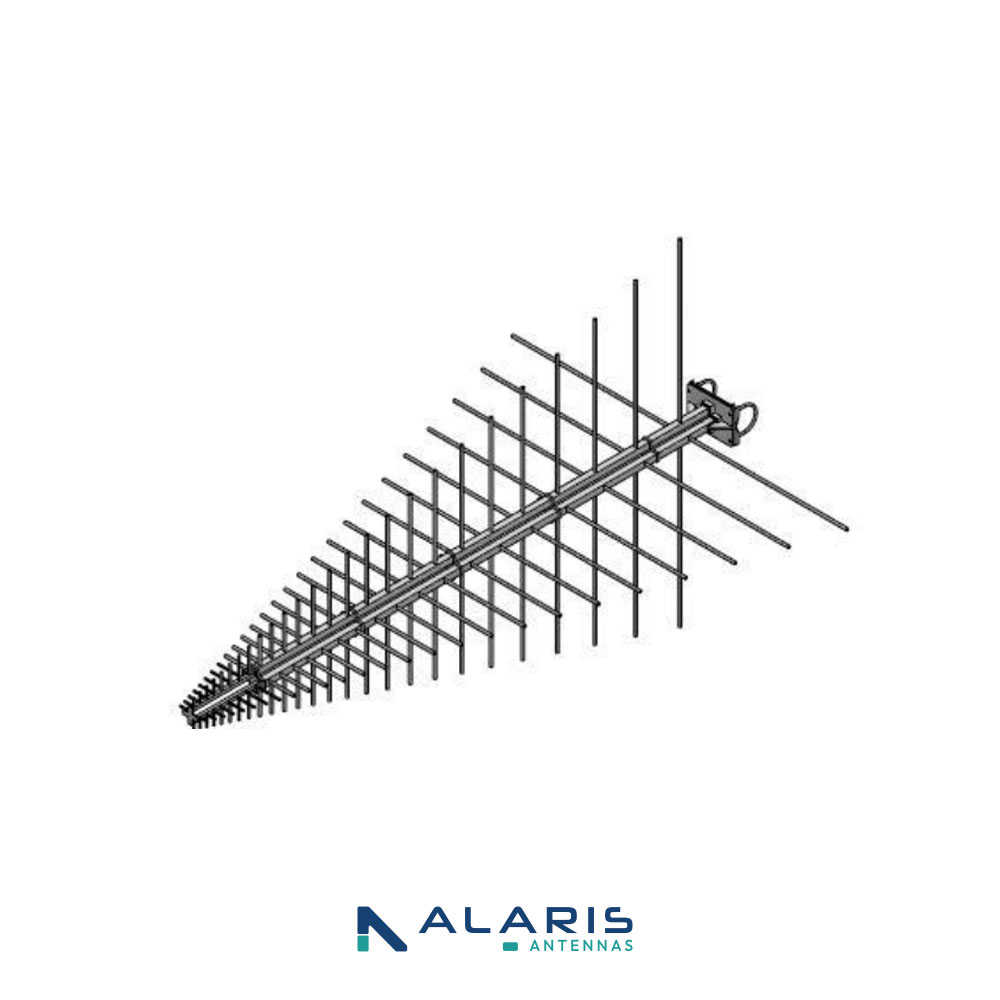

Dual-Polarised LPDA Antenna (LPDA-A0041)
Dual-Polarised LPDA Antenna (LPDA-A0041)
Concept

LPDA-A0041

Dual-Polarised LPDA Antenna

  • Download datasheet

    • The LPDA-A0041 is a high-powered, 500 W, directional logperiodic dipole array that covers the 100 to 500 MHz frequency band. The antenna is supplied with its mounting bracket.

    *No payment required on checkout

    Call our Sales team

    +27110345300

    Email our Sales team

    [email protected]

    Specifications & Resources for LPDA-A0041

    Ideal application and market usage

    Ideal markets

    • Safety & Security
      • Defence
      • Homeland security

    Ideal applications

    • Electronic countermeasures
      • Counter UAS
      • Comms jamming
    Frequency range
    100 - 500 MHz
    VSWR
    < 2.5:1
    Nominal input impedance
    50 Ω
    Isolation (typical)
    > 15 dB
    Feed power handling
    500 W
    Gain
    > 6 dBi over 95% of the frequency band
    E-plane 3 dB beamwidth
    50°
    H-plane 3 dB beamwidth
    120°
    Polarisation
    Dual linear
    Connectors
    Two 7/16 female (one for each pole)
    Dimensions (w x h x l)
    1700 mm x 1700 mm x 2100 mm
    Material
    Aluminium, stainless steel, fibreglass
    Total mass
    < 16 kg (incl. mounting bracket)
