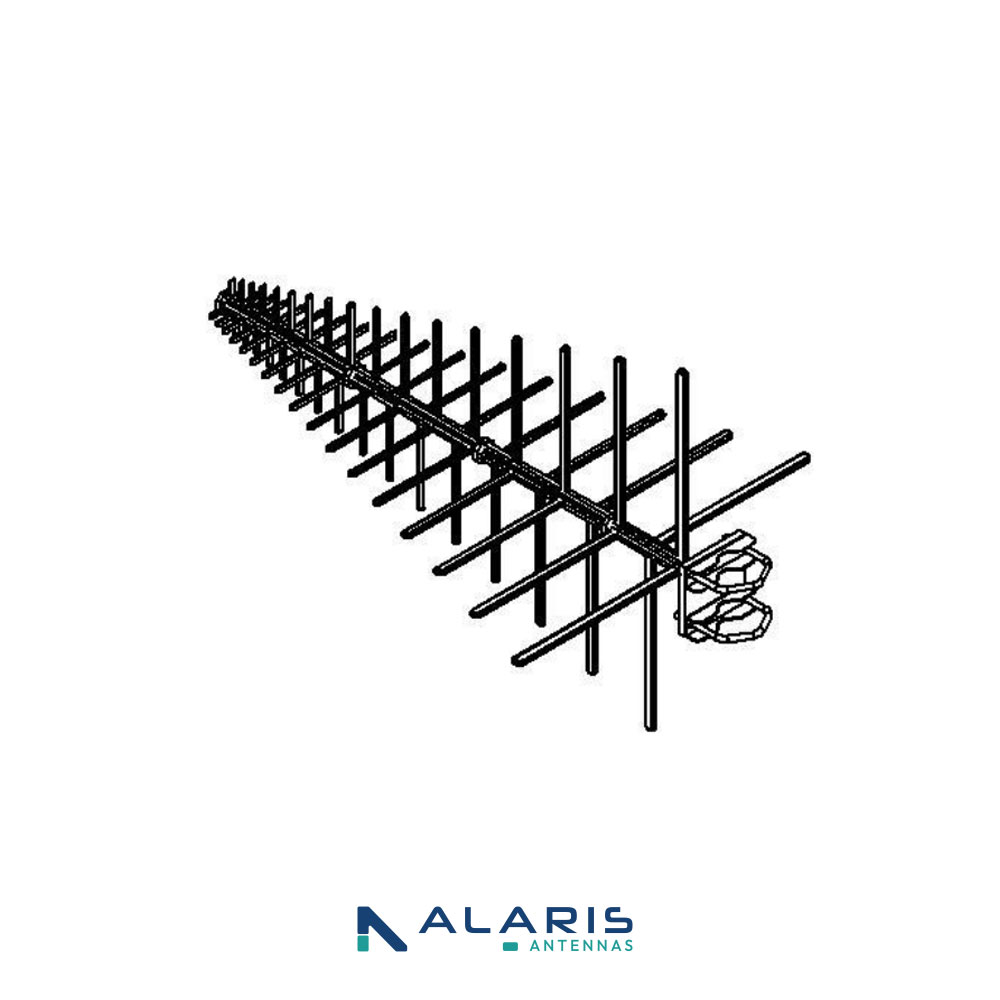

Dual-Polarised LPDA Antenna (LPDA-A0042)
Dual-Polarised LPDA Antenna (LPDA-A0042)
Concept

LPDA-A0042

Dual-Polarised LPDA Antenna

  • Download datasheet

    • The LPDA-A0042 is a high-powered, 500 W, directional logperiodic dipole array that covers the 500 to 1000 MHz frequency band. The antenna is supplied with its mounting bracket.

    *No payment required on checkout

    Call our Sales team

    +27110345300

    Email our Sales team

    [email protected]

    Specifications & Resources for LPDA-A0042

    Ideal application and market usage

    Ideal applications

    • Electronic countermeasures
      • Counter UAS
      • Comms jamming
    Frequency range
    500 - 1000 MHz
    VSWR
    < 2:1
    Nominal input impedance
    50 Ω
    Isolation
    > 22 dB
    Feed power handling
    500 W
    Gain
    > 6 dBi over 95% of the frequency band
    Elevation 3 dB beamwidth
    68°
    Azimuth 3 dB beamwidth
    100 °
    Polarisation
    Dual
    Connectors
    Two 7/16 female (one for each pole)
    Dimensions (w x l)
    450 mm x 600 mm
    Material
    Aluminium, stainless steel, fibreglass
    Total mass
    < 7 kg (incl. mounting bracket)
