MISC-A0022

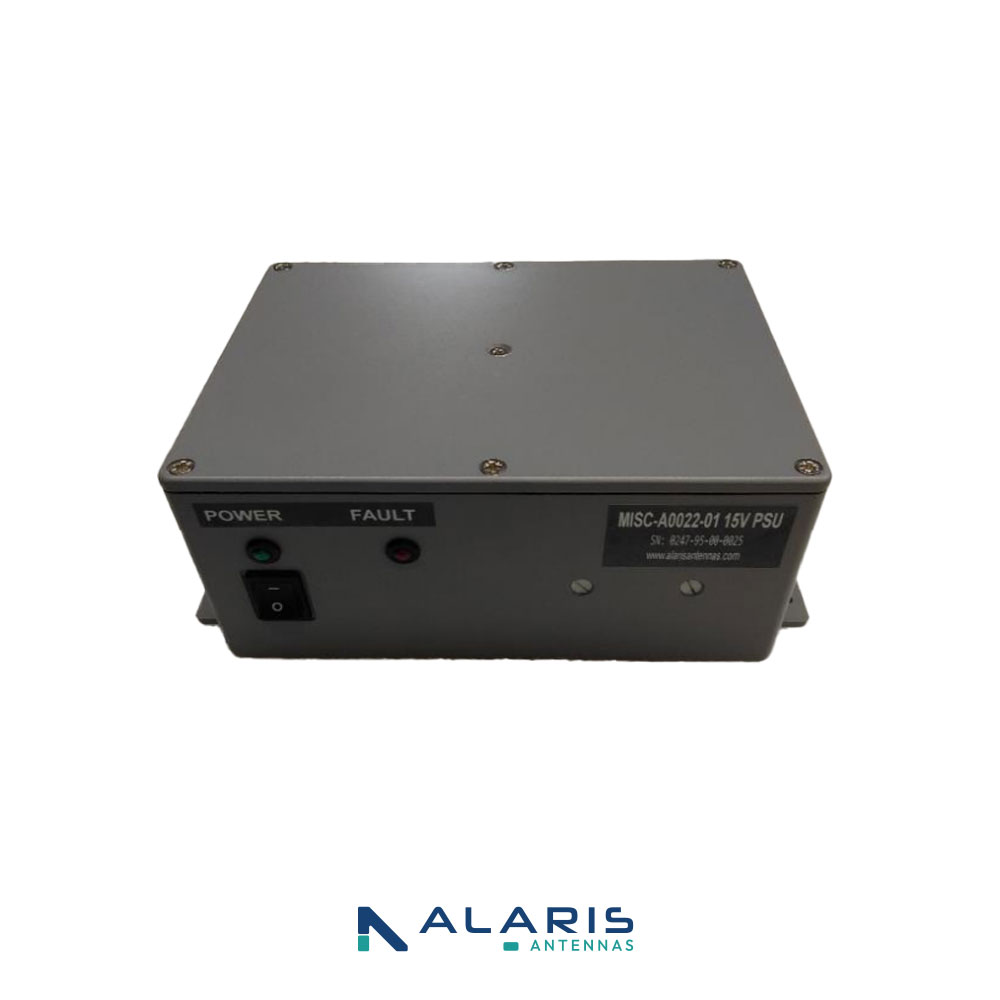

15 V Coaxial Power Supply
Download datasheet
A wideband 15 V coaxial power supply used to bias active antennas or amplifiers. It is available as a single-channel (MISC-A0022-01), single channel supply with on/off control board (MISC-A0022-05) or dual-channel (MISC-A0066-01). Internal power conditioning and filtering ensures a clean supply of power to the antenna with no RF noise from the power line, or external or internal sources.
*No payment required on checkout
-
Call our Sales team
- +27110345300
-
Email our Sales team
- [email protected]
Specifications & Resources for MISC-A0022
Ideal application and market usage
- Design Features
- Wideband, 0.1 - 6000 MHz. Low insertion loss. High current capability. Rugged construction. Automatic input voltage ranging. Overload protection with fault indicator.
- Frequency range
- 100 kHz - 6 GHz
- AC input
- 110 -120 or 220 - 240 V 50 - 60 Hz
- DC input
- 20 - 30 V, 500 mA
- RF connector
- N-type female
- VSWR
- < 1.5:1 below 3 GHz < 2.0:1 above 3 GHz
- Nominal input impedance
- 50 Ω
- Insertion loss
- < 1.4 dB below 3 GHz; < 2.4 dB above 3 GHz
- Dimensions (l x w x h)
- 195 x 150 x 80 mm
- Packed dimensions
- 245 x 210 x 110 mm
- Total mass
- 1.3 kg
- Temperature (operational)
- -40°C - +70°C
- Temperature (storage)
- -40°C - +85°C
- Water and dust resistance
- IP55
