DF-A0057

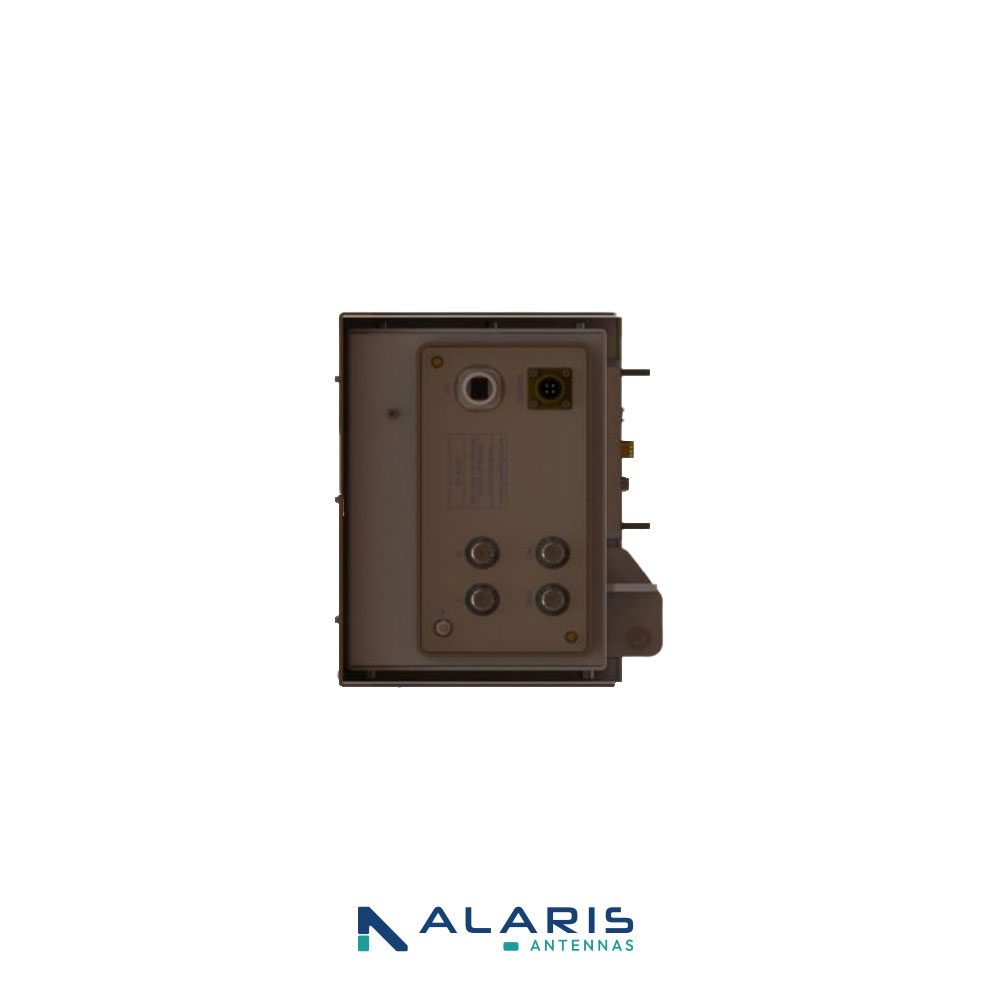

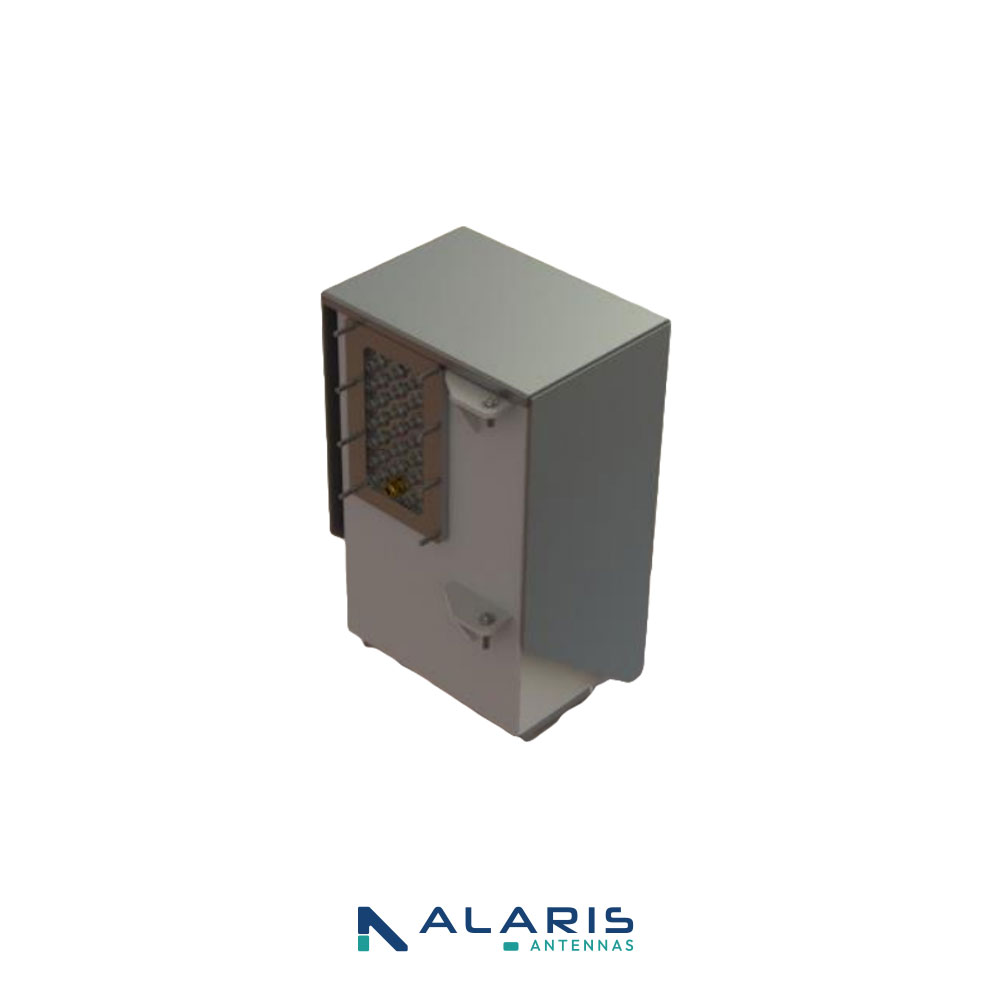

Outdoor Housing for DF Switches
Download datasheet

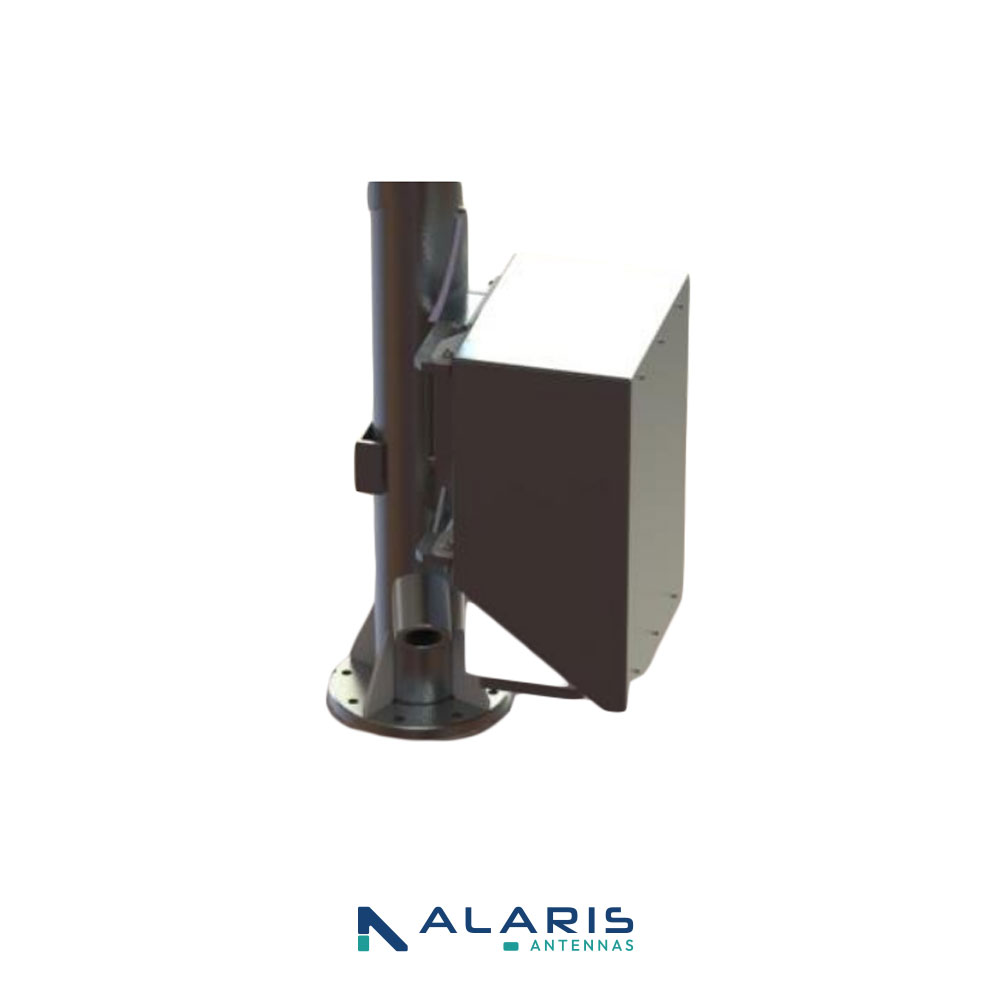

The DF-A0057 is a waterproof box designed for housing of our DF switch range. It allows the switches DF-A0050, DF-A0052, DF-A0054, DF-A0058, DFA0064 or DF-A0137, which are intended for indoor mounting, to be mounted to the DF-A0001, DF-A0007, DF-A0038, DF-A0062 or DF-A0136 antennas.
*No payment required on checkout
-
Call our Sales team
- +27110345300
-
Email our Sales team
- [email protected]
Specifications & Resources for DF-A0057
Ideal application and market usage
-
Ideal markets
-
-
Safety & Security
-
Safety & Security
-
Ideal applications
-
- Electronic Surveillance
- Signals intelligence
- Design Features
- Flange mounting for DF antennas Internal lightning protection for RF and DC mast cables Phase-matched internal cabling
- Frequency Range
- 1 - 6000 MHz
- DF input connectors
- 15 x TNC (f)
- OMNI input connector
- 1 xz N (f)
- Phase matching
- < 2° at 3 GHz
- Output connectors
- 7 x N (f)
- Protection
- Telegaertner 10 kA arrestors
- Dimensions
- 458 mm x 281 mm x 201 mm
- Total mass
- 8.2 kg excluding switch
- Mounting
- Eight M6 bolts. Hinge for support while fastening connectors
- External material
- Aluminium
- Temperature range
- -40°C to +70°C
- Water ingress rating
- IP54
- Salt spray
- MIL-STD-810F
