DF-A0214

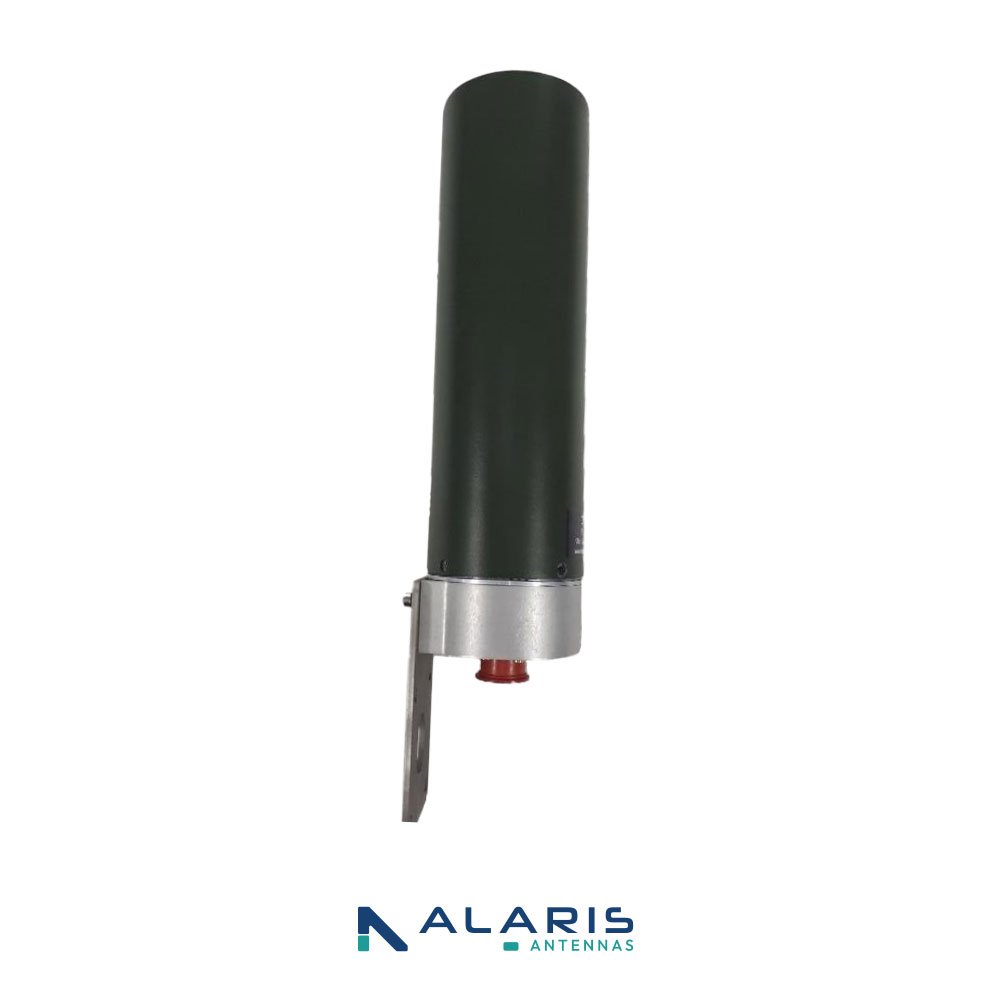

Compact Adcock DF Antenna
Download datasheet
The DF-A0214 is a single band, compact Adcock DF antenna intended for direction-finding from 500 to 2000 MHz. The antenna presents patterns suitable for the Watson-Watt estimation method, as well as 3-channel correlative DF (CIDF). The antenna offers an omnichannel output that can also be used for monitoring. The DF-A0214 combiner board has an integrated noise source for calibration, passive GPS and an electronic compass
*No payment required on checkout
-
Call our Sales team
- +27110345300
-
Email our Sales team
- [email protected]
Specifications & Resources for DF-A0214
Ideal application and market usage
-
Ideal markets
-
-
Safety & Security
- Defence
- Homeland security
- Border control
-
Safety & Security
-
Ideal applications
-
-
Spectrum management
- Radio direction finding
- Electronic Surveillance
-
Signals intelligence
- Radio direction finding
-
Spectrum management
- Frequency range
- 500 - 2000 MHz
- Number of channels
- 3
- DF method
- Watson-Watt or 3-channel CIDF
- Polarisation
- Vertical
- Omni-output
- On channel 1
- Nominal input impedance
- 50 Ω
- Power supply
- 15 ±2 V DC
- Power consumption
- < 1 W (noise source and compass off)
- Mechanical
- Flange for vehicle or mast-mounting
- Dimensions (d x h)
- 83 mm x 388 mm (incl. mounting flange
- Total mass
- < 2 kg
- Wind survival
- 160 km/h (without ice)
- Waterproofing
- IP65 rain proof
